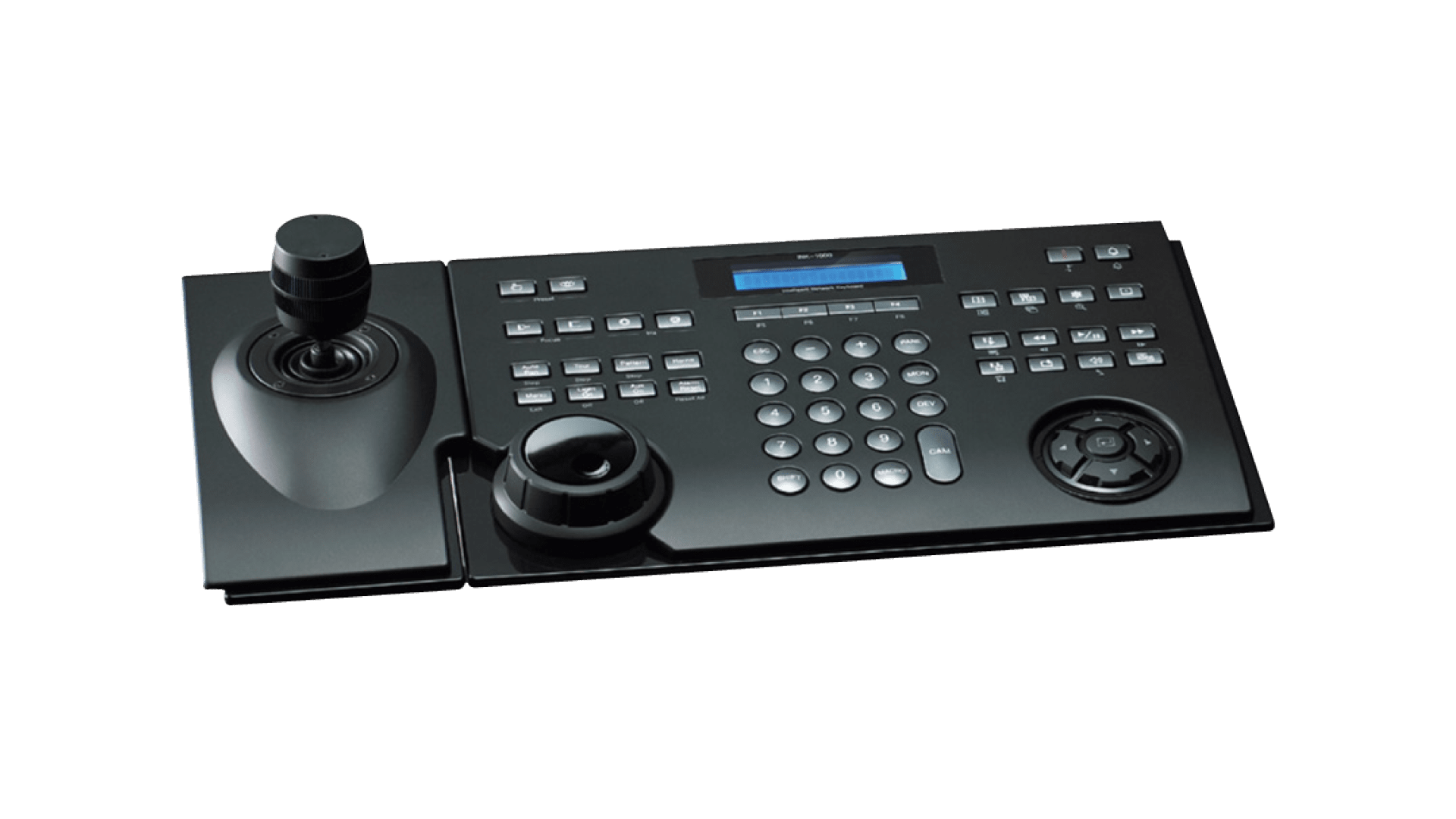

NK-1200
Remote control of NVRs, network video transmitters, network video receivers and network cameras via the network connection
Two-way audio communication
Two-way audio communication
Convenient firmware upgrades via either the USB port or Ethernet
Firmware duplication and auto-recovery functions to enhance system stability
Management of multiple network keyboards via the network connection
Programmable by using the LCD screen
Description
Network Keyboard
| Communication | |
| Interface | 2 x RS485(Terminal Block), 10/100/1000 Ethernet(RJ45, PoE IEEE802.3AF) |
| Baud Rate | 300 bps ~ 115,200bps |
| Supports protocols | Over 70 sorts of PTZ protocol(IDIS, PANASONIC, PELCO, SAMSUNG, etc.) |
| Supports Devices | IP Camera, NVR, IDIS solution Suite |
| Display | LCD(2 Line) |
| USB | 1 x USB2.0, 1 x USB3.0 |
| Audio in/out | 1(3.5mm) / 1( 3.5mm) |
| configuration | Joystick + Main Control Board |
| S/W Upgrade | USB, Network |
| SETUP Program | IDIS Discovery |
| General | |
| Dimension(W x H x D) | 376.9mm x 95mm x 177.6mm (15.0″ x 3.7″ x 7.0″) |
| Unit Weight(Kg) | 1.1kg (2.43lb) |
| Power Input | DC 48V, 1A, PoE(IEEE 802.3af class 0) |
| Approvals | FCC, CE, KC |
Additional information
| Brand | IDIS |
|---|---|
| Model | NK-1200 |
| Product Type | Surveillance Accessory |
| Category | Network Accessories |
| Key Features | Network Keyboard |
